CNG VALVES

Gas valves are the tangible result of our thirty-year history.

OMB Saleri is a leader in the design, in the development and production of CNG valves applications, both for light and heavy vehicles. A complete range of valves, multivalves, solenoid valves, safety devices and accessories for CNG tanks. Our components are safety products and, as such, must comply with strict quality certifications. Every technical solution is subjected to the related laboratory tests.

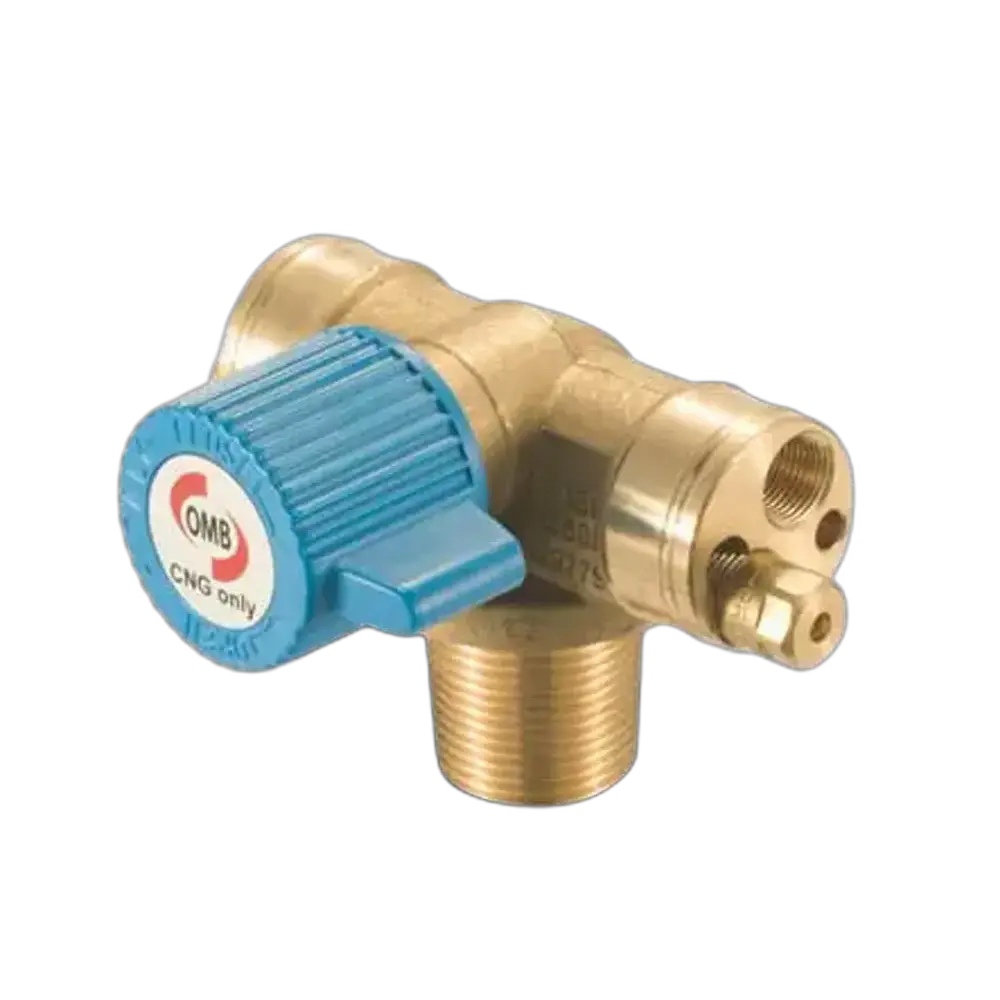

ALFA NEW

CILYNDER VALVES

LIGHT DUTY

ALFA NEW

FEATURES

Manual cylinder valve with internal venting system (no gas tight housing required)
Max working pressure: 260 bar
Working temperature: -40°C +85°C
Safeties: available without safeties or with a combination of thermal safety / excess flow / burst disk
Available in different thread sizes – additional safeties available for cylinders and pipes

CERTIFICATION

ECE R110
ISO 15500
OGRA
CCOE
CERTIFIED
SISEI
COVENIN 3227

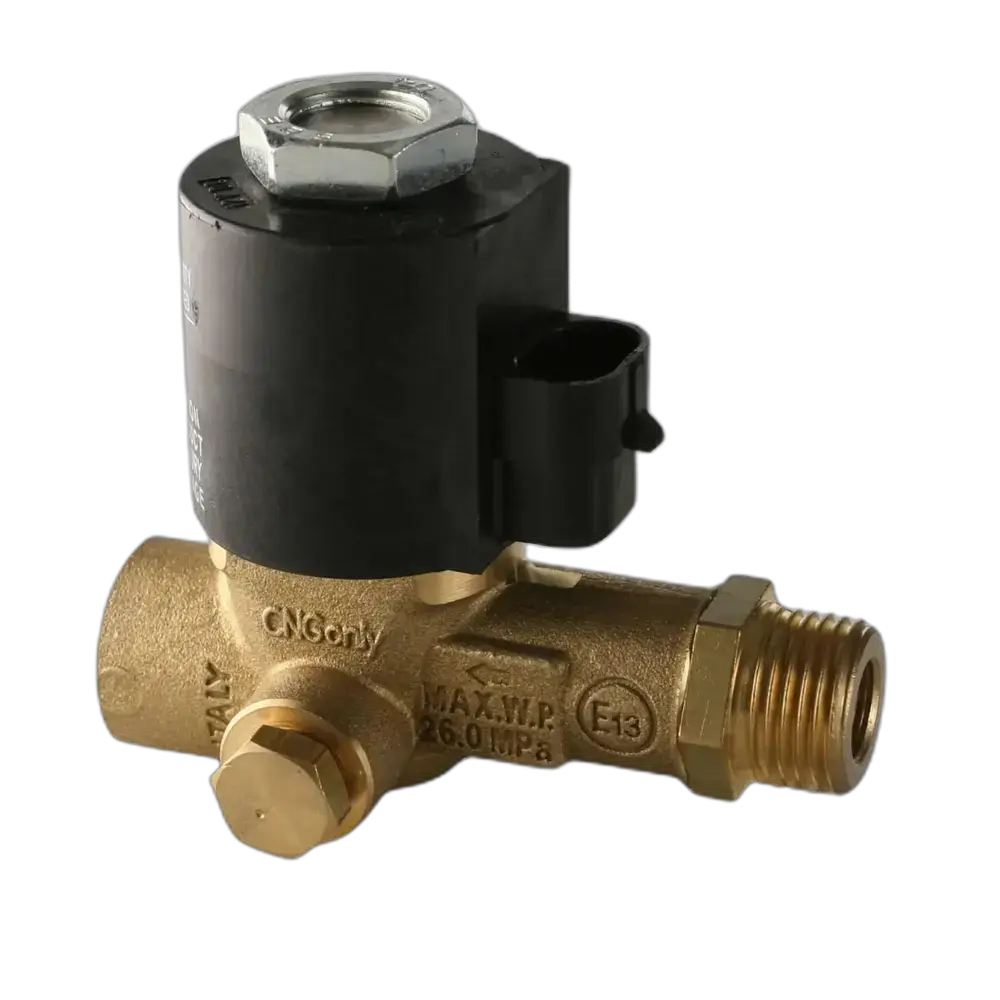

APUS

CUT OFF

LIGHT DUTY

HEAVY DUTY

APUS

FEATURES

In line cut-off automatic valve
Low absorption solenoid valve
Universal thread connections available to match every application
CNG inlet filtering system
Max working pressure: 260 bar
Working temperature: -40 + 120°C

CERTIFICATIONS

ECE R110
CERTIFIED
ISO 15500

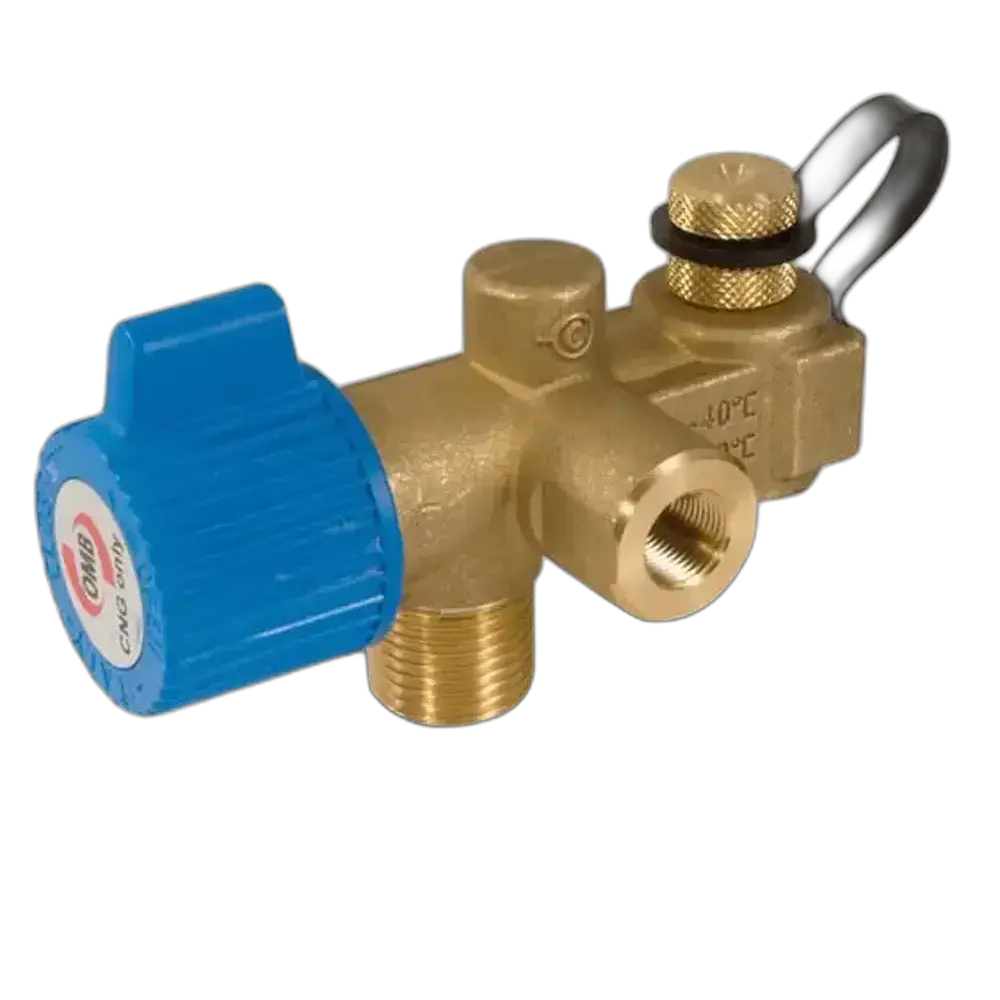

ARGO

FILLING VALVES

LIGHT DUTY

ARGO

FEATURES

Filling charge valve
Max working pressure: 260 bar
Working temperature: -40°C +120°C
Manual safety tap – available in different thread connections

CERTIFICATIONS

ECE R110
CERTIFIED

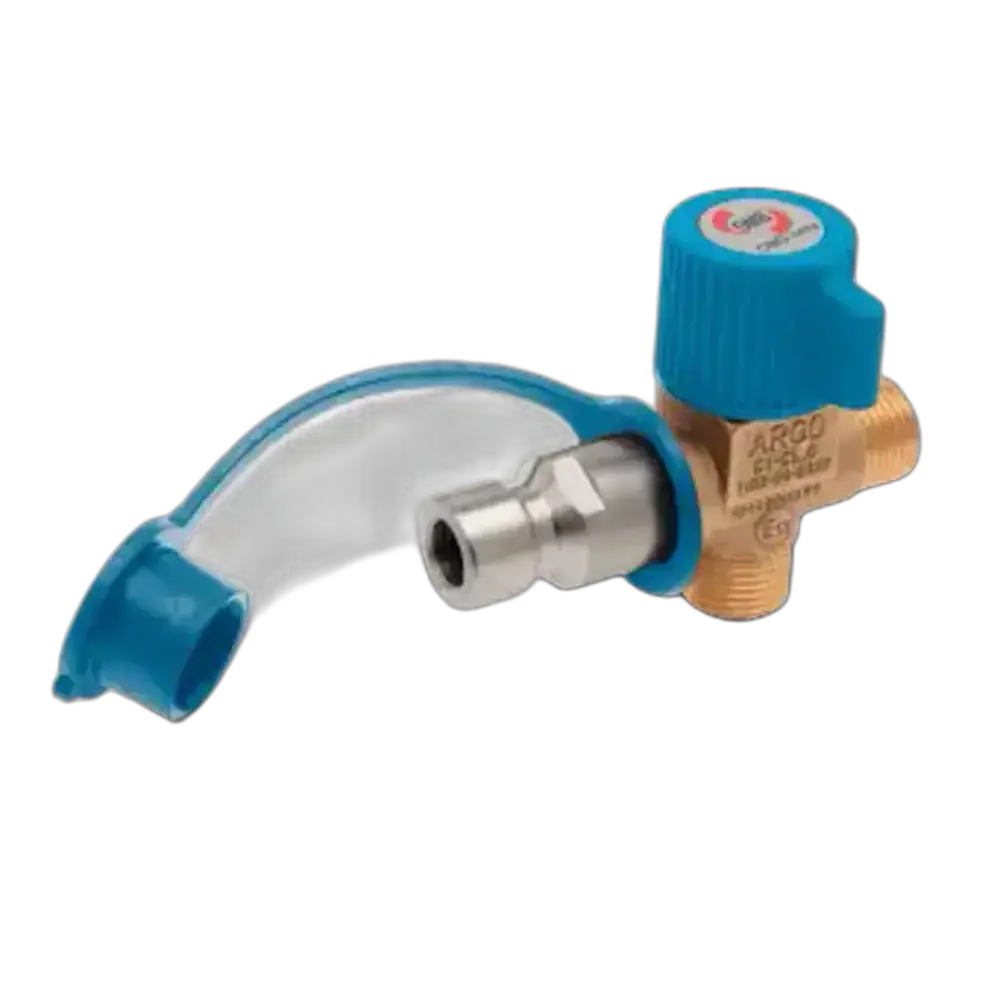

ARGO NGV1 COMPACT

FILLING VALVES

LIGHT DUTY

ARGO NGV1 COMPACT

FEATURES

Filling charge valve NGV1
Max working pressure: 260 bar
Working temperature: -40°C +120°C
Manual safety tap – non-return valve – available in different thread connections
Special flow dynamic profile to avoid chattering noises during refueling

CERTIFICATIONS

ECE R110
CERTIFIED

ARGO RUSSIA

FILLING VALVES

LIGHT DUTY

ARGO RUSSIA

FEATURES

Filling charge valve for Russia and Ukraine
Max working pressure: 260 bar
Working temperature: – 40° + 120° C

CERTIFICATION:

ECE R110
CERTIFIED

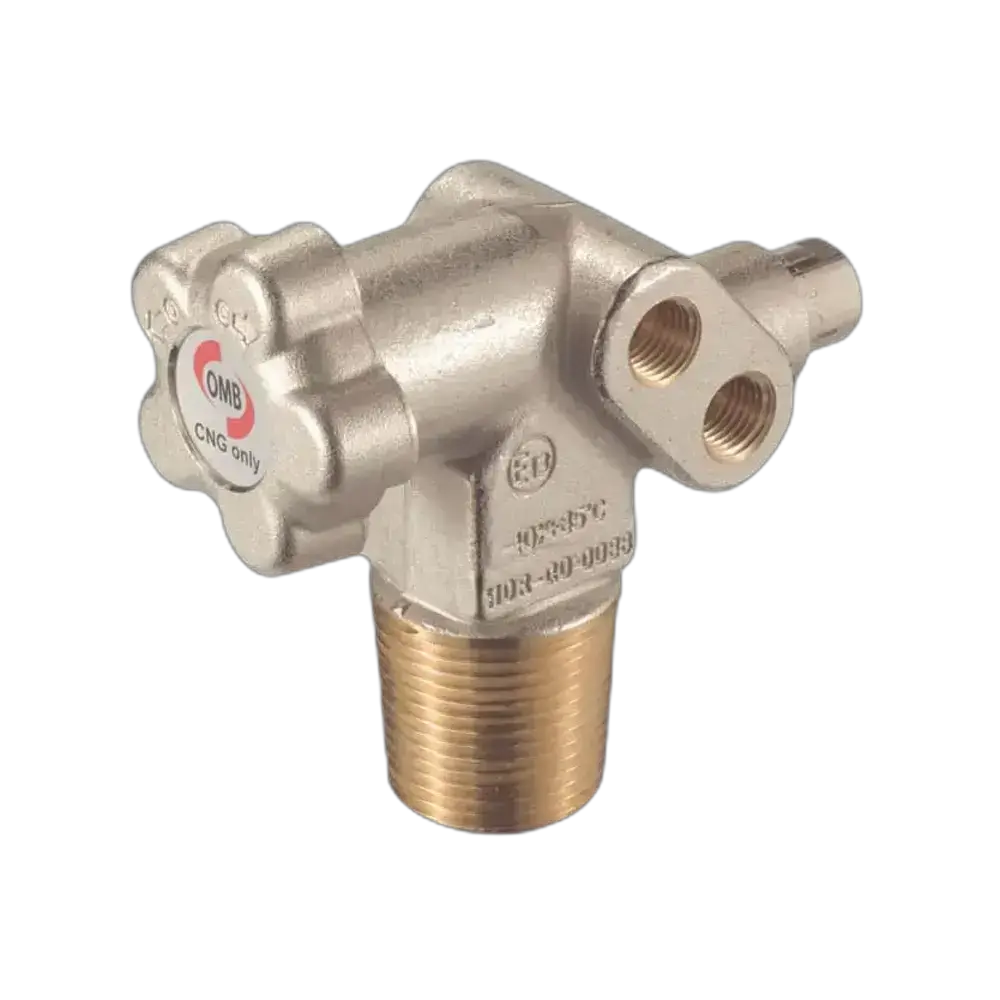

BETA NEW

CILYNDER VALVES

HEAVY DUTY

BETA NEW

FEATURES

Manual cylinder valve without internal venting system
Max working pressure: 260 bar
Working temperature: -40°C /+85°C
Conveyed thermal safety and burst disc
Available in different thread sizes – double connection and optional safety discharge port

CERTIFICATIONS

ANSI-AGA NGV 3.1
ANSI-IAS PRD1
CERTIFIED
ECE110
KGS
CCOE
ISO 15500

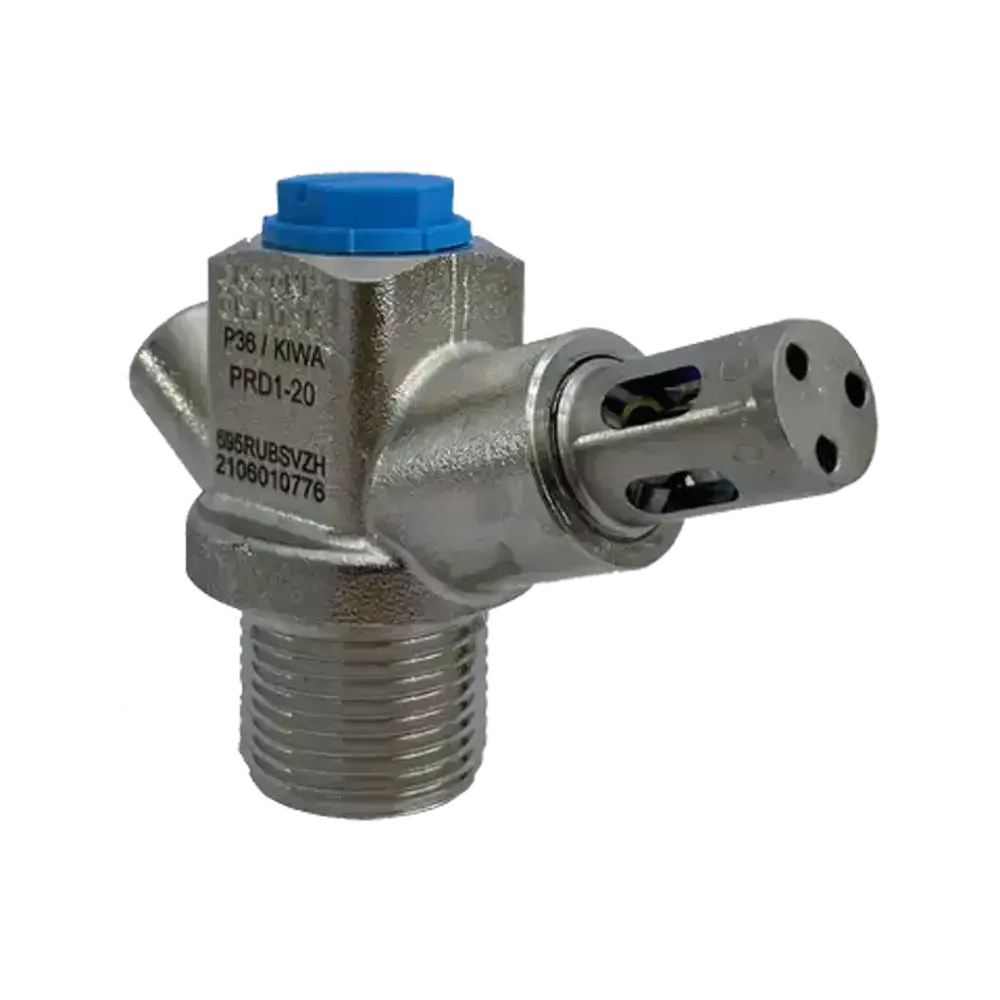

BULL 2

ADDITIONAL SAFETIES

BULL 2

With glass bulb

DESCRIPTION

End-line remote TPRD 110°C

FEATURES

Max working pressure 31MPa @ +82°C
Service pressure 24.8MPa
Working temperature: -40°C +85°C
Glass bulb concept; faster activation time

CERTIFICATIONS

ANSI-AGA NGV 3.1
ANSI-IAS PRD1
CERTIFIED

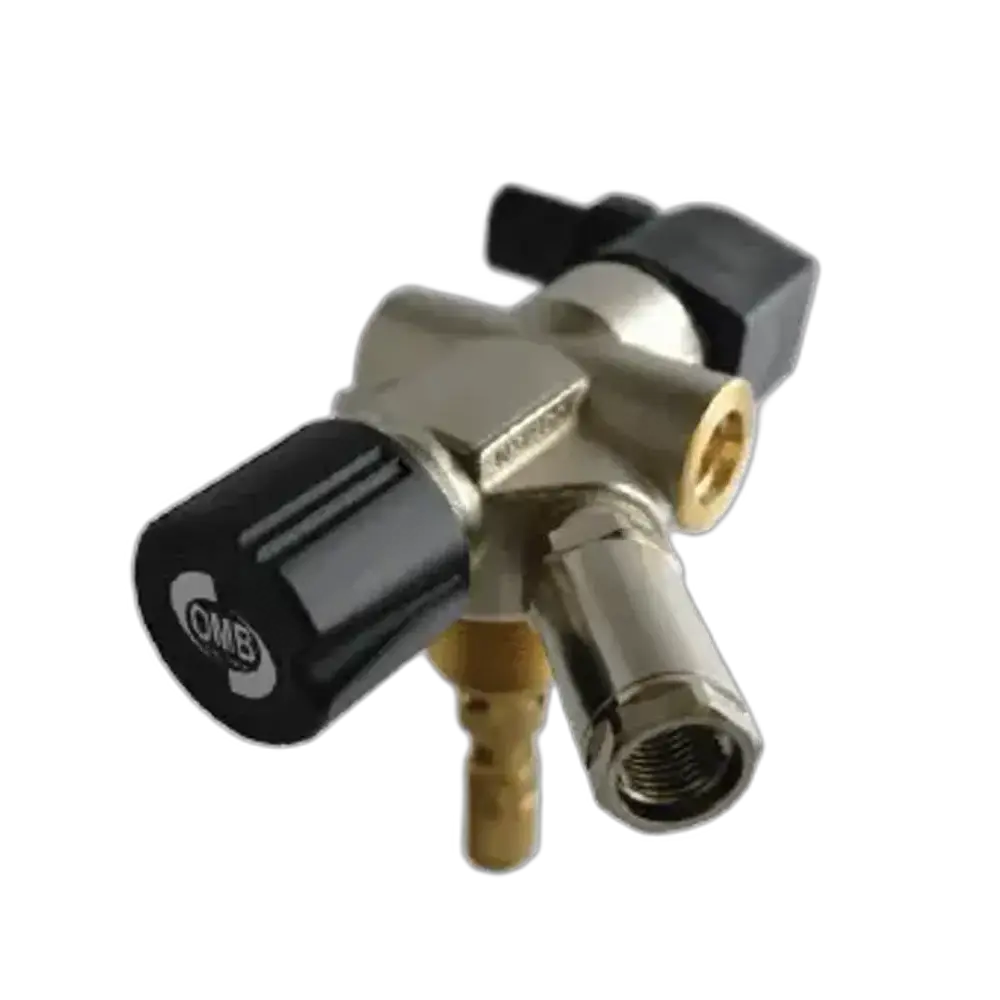

ESA

CILYNDER VALVES

LIGHT DUTY

HEAVY DUTY

ESA

FEATURES

Automatic cylinder valve
Max working pressure: 260 bar
Working temperature: -40°C +85°C
Glass bulb tprd
High flow thermal safety valve prd
Burst disk available upon request
Live port available
Safety venting port
Excess flow valve
Low absorption solenoid valve
Manual security tap – opening 180°
Specific for low temperatures
High flow
Design compact
Waterproof electric connection

CERTIFICATIONS

ECE R110
ANSI–AGA NGV 3.1
ANSI–IAS PRD1

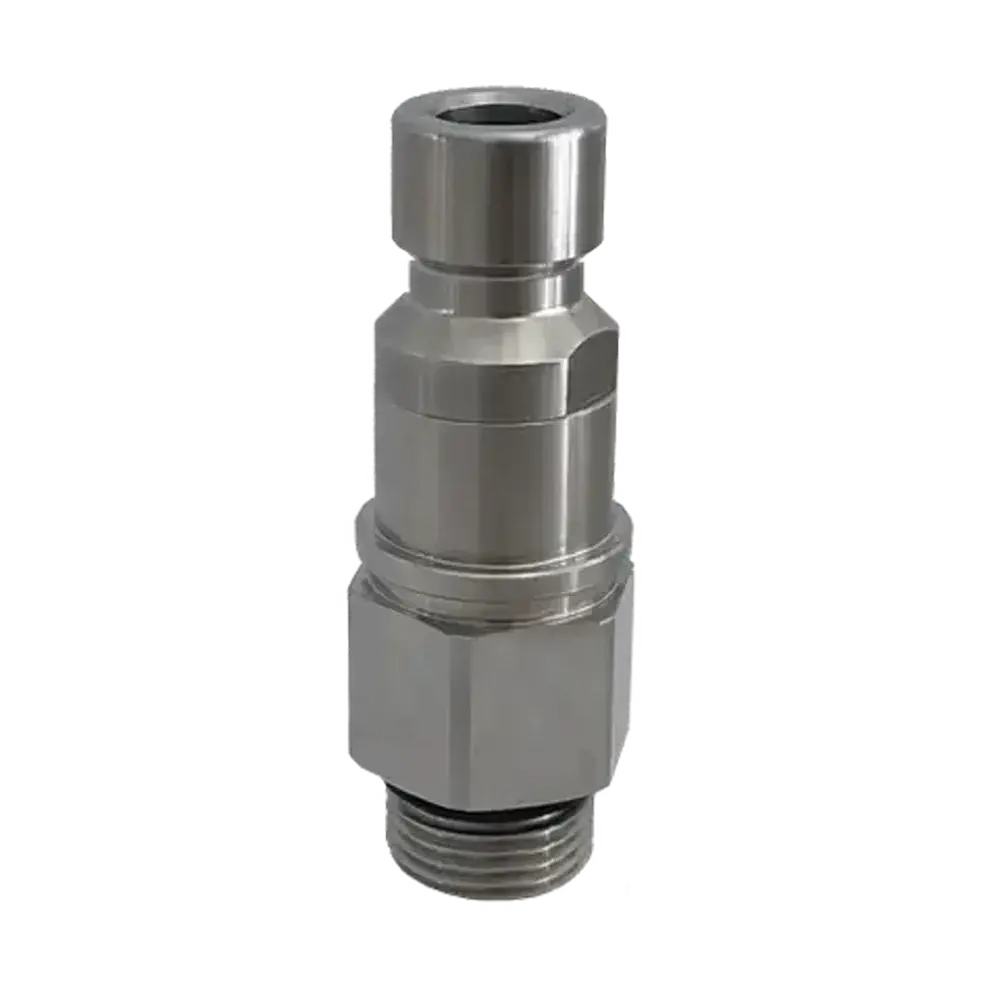

FUELING DEFUELING

FILLING VALVES

FUELING DEFUELING

DESCRIPTION

NGV1 receptacle

FEATURES

Max working pressure: 260 bar
Working temperature: -40°C +120°C
Special flow dynamic profile to avoid chattering noises during refueling
Embedded defueling device (to discharge pressure before maintenance operation)

CERTIFICATIONS

NGV3.1
CERTIFIED

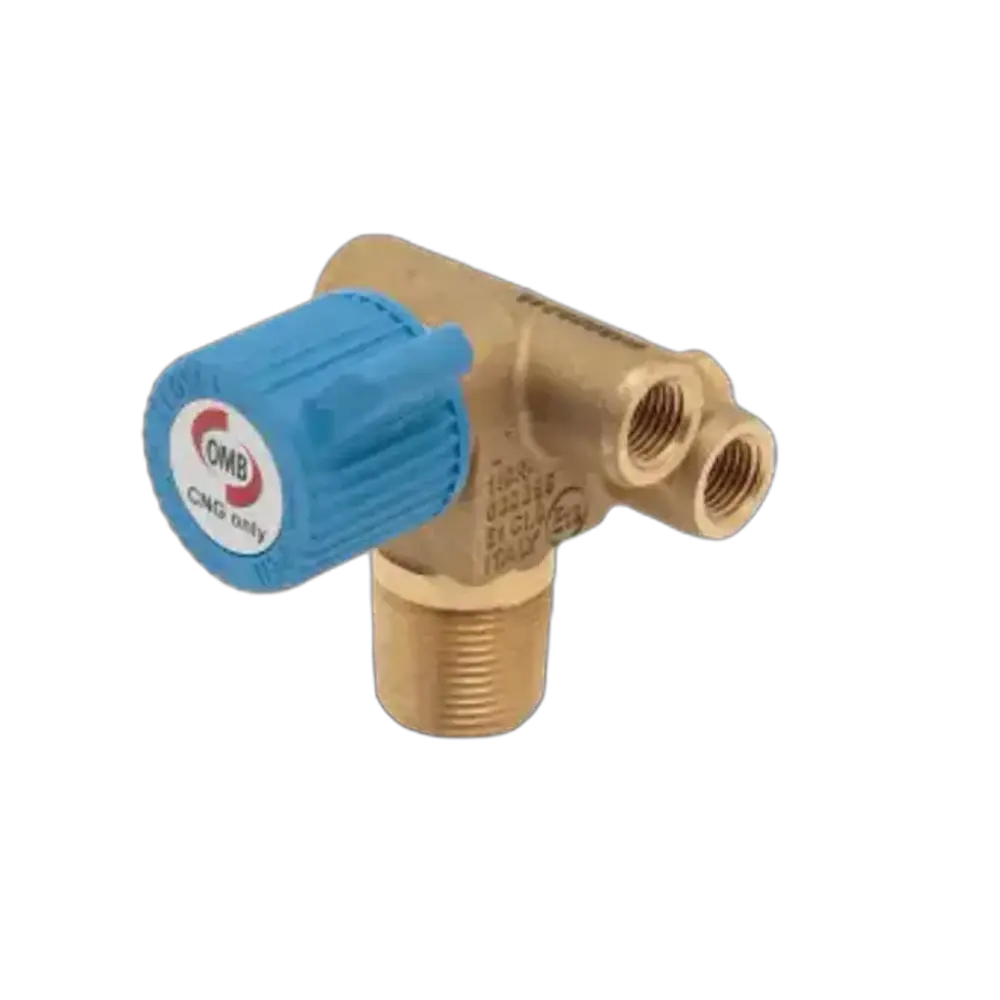

IDRA VT

CILYNDER VALVES

LIGHT DUTY

IDRA VT

FEATURES

Manual cylinder valve without internal venting system
Parallel safeties (TPRD + PPRD) with pipe-away ports
Max working pressure: 260 bar
Working temperature: -40°C +85°C
Excess flow
Available in different thread sizes

CERTIFICATIONS

ECE R110
CCOE
CERTIFIED
ISO 15500

LIGHT

CILYNDER VALVES

LIGHT DUTY

LIGHT

FEATURES

Manual cylinder valve without internal venting system
Max working pressure: 260 bar
Working temperature: -40°C +85°C
Manual security tap
Safeties: available without safeties or with a combination of thermal safety / excess flow / burst disk

CERTIFICATIONS

ECE R110
CCOE
CERTIFIED
SISEI
OGRA

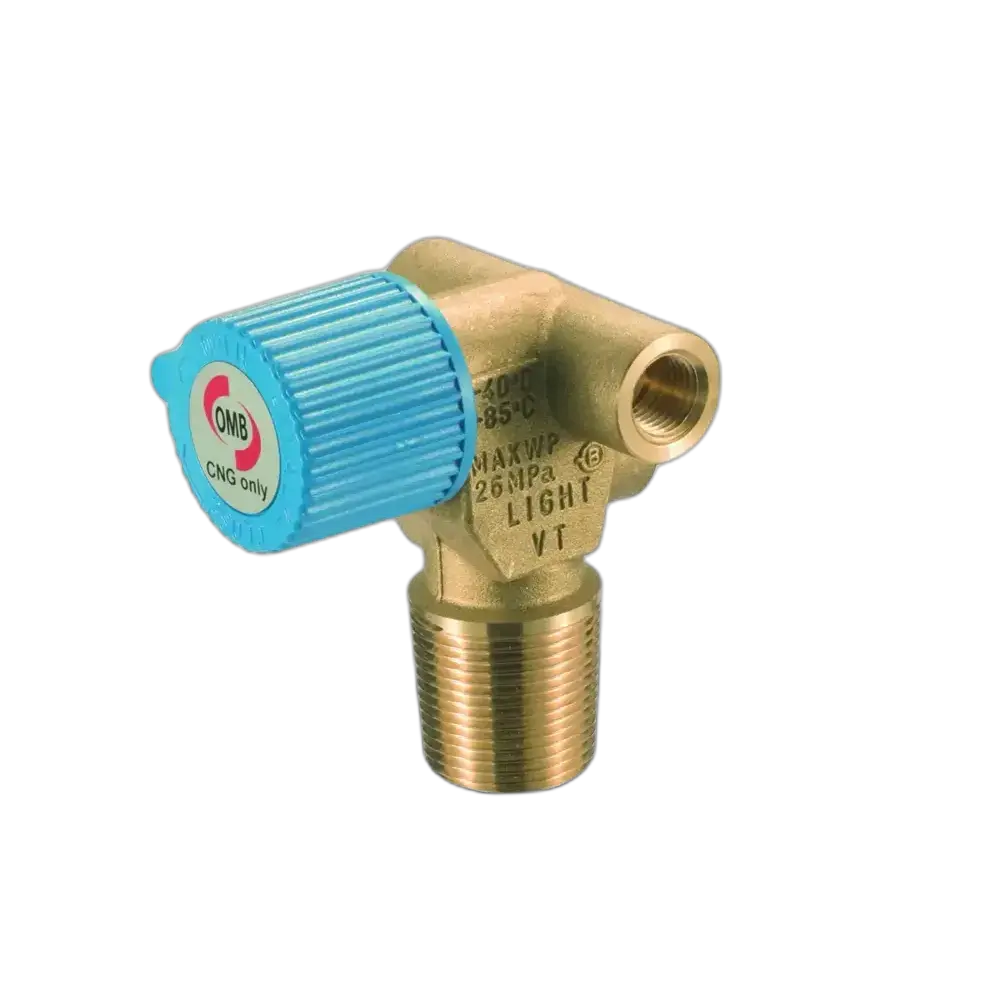

LIGHT VT

CILYNDER VALVES

LIGHT DUTY

LIGHT VT

FEATURES

Manual cylinder valve without internal venting system
Max working pressure: 260 bar
Working temperature: -40°C +85°C
Safeties: available without safeties or with a combination of thermal safety / excess flow / burst disk
TPRD pipe – away safety port

CERTIFICATIONS

ECE R110
CCOE
CERTIFIED
SISEI
OGRA

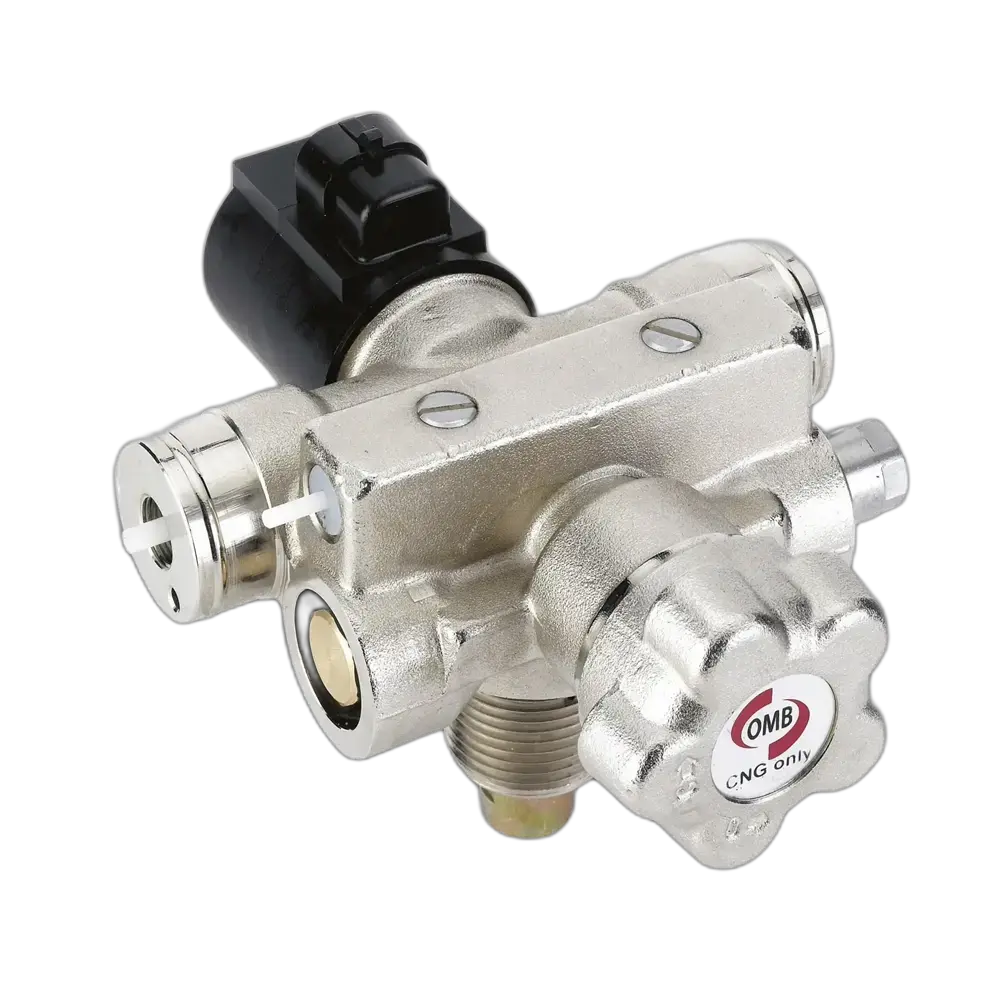

LYRA

CILYNDER VALVES

LIGHT DUTY

LYRA

FEATURES

Automatic cylinder valve with internal venting system (no gas tight housing required)
Max working pressure: 260 bar
Working temperature: -40°C + 85°C
High flow thermal safety valve
Available on demand the version with double PRD
Low absorption solenoid valve
On request with non-return valve integrated
Double pipe away safety ports

CERTIFICATIONS

ECE R110
ISO 15500
KGS
ANSI-AGA NGV 3.1
CERTIFIED
ANSI-IAS PRD1

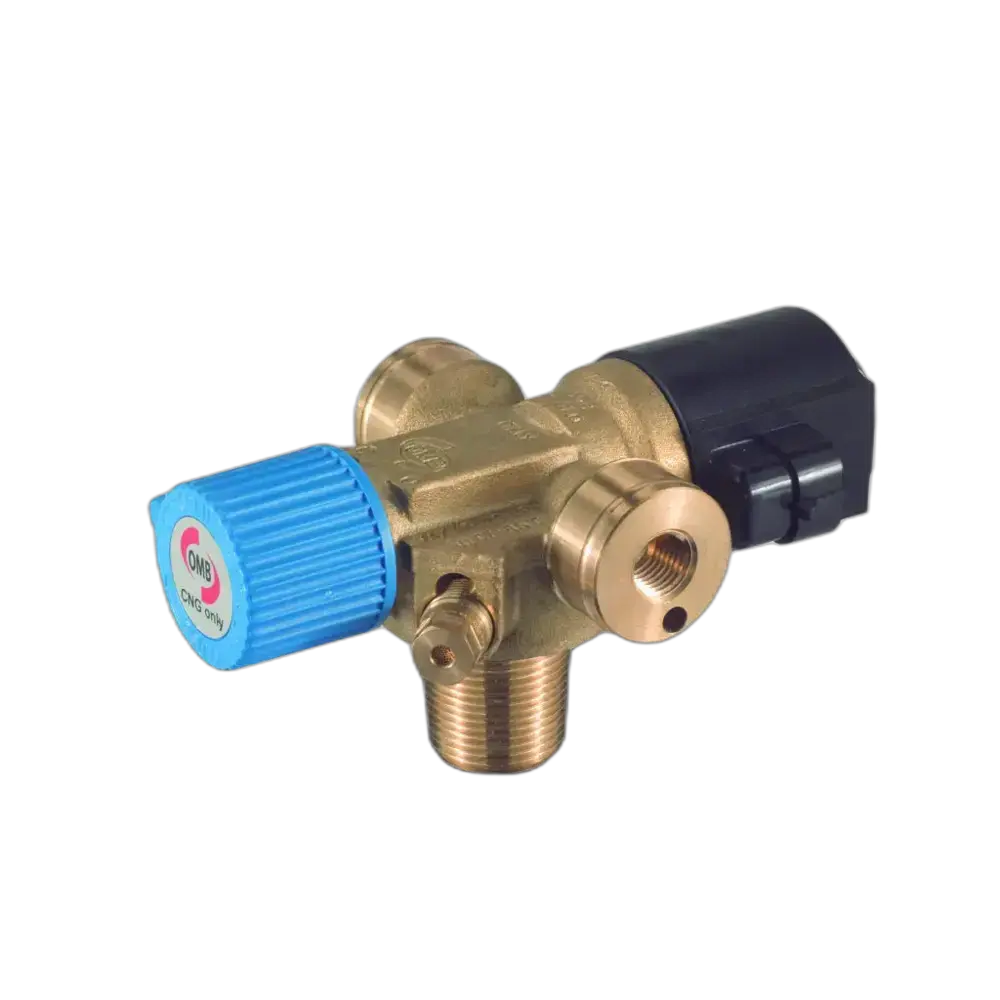

MOON

CILYNDER VALVES

LIGHT DUTY

MOON

FEATURES

Automatic cylinder valve with internal venting system (no gas tight housing required)
Max working pressure: 260 bar
Working temperature: -40°C + 85°C
Thermal safety valve (PRD)
Burst disk available upon request
Manual security tap
Excess flow valve
Low absorption solenoid valve
Non-return valve avaible on request

CERTIFICATIONS

ECE R110
ISO 15500
CCOE
OGRA
SISEI
CERTIFIED
COVENIN 3227

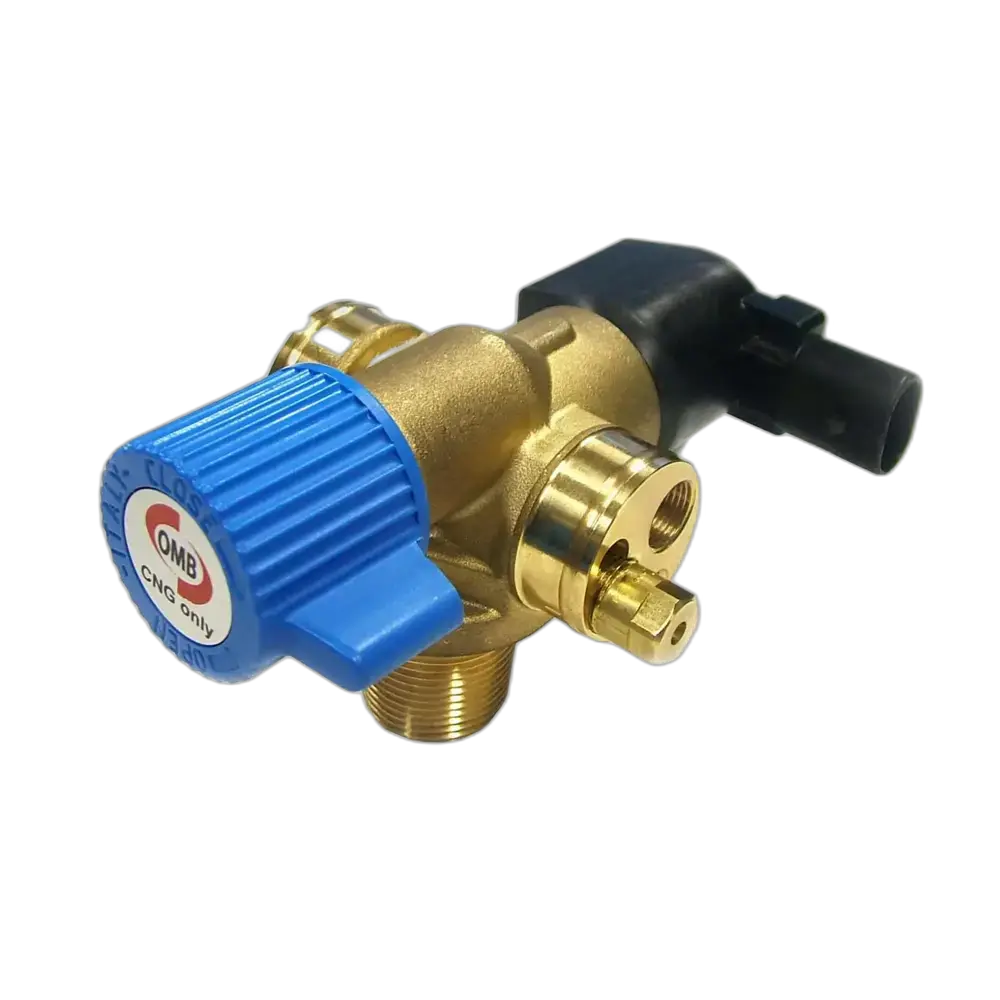

MOON CP

CILYNDER VALVES

LIGHT DUTY

MOON CP

FEATURES

Automatic cylinder valve with internal venting system (no gas tight housing required)
Max working pressure: 260 bar
Working temperature: -40°C + 85°C
High flow thermal safety valve
Available on demand the version with double PRD
Low absorption solenoid valve
On request with non-return valve integrated
Double pipe away safety ports

CERTIFICATIONS

ECE R110
ISO 15500
CCOE

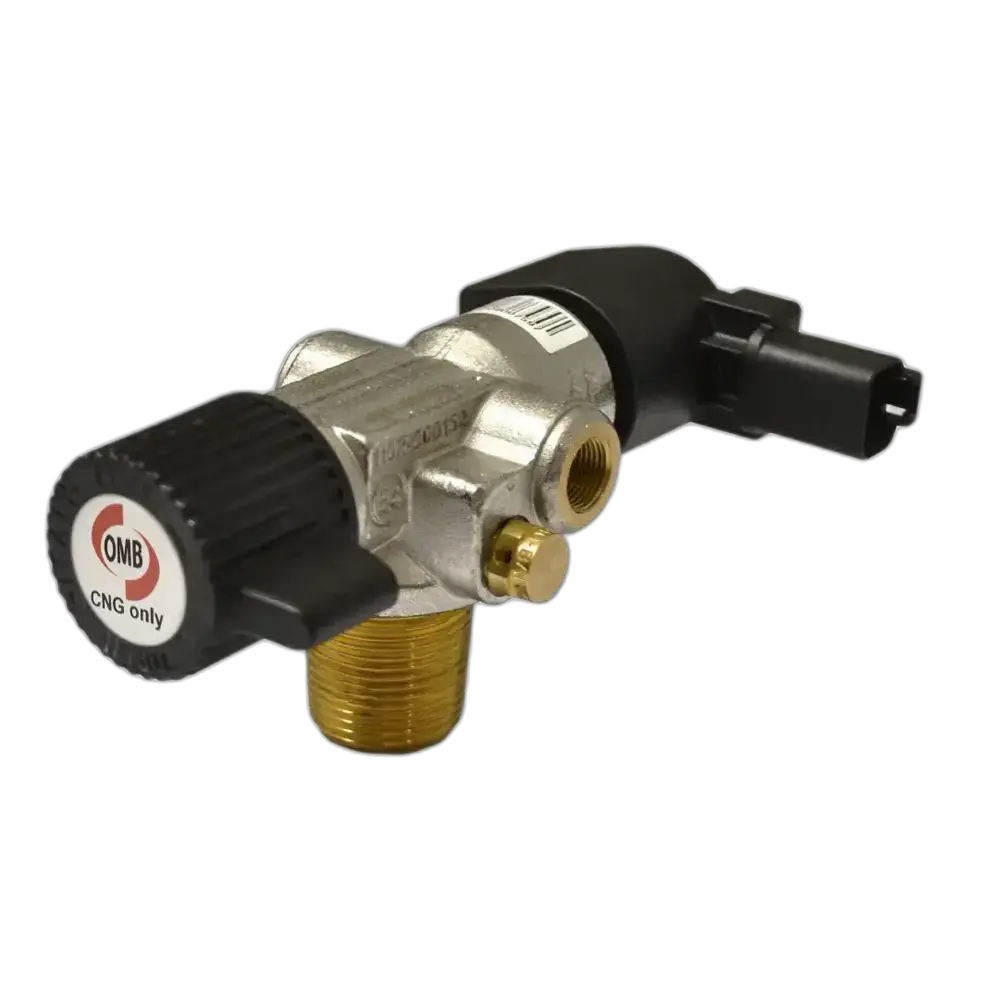

ORION

CILYNDER VALVES

LIGHT DUTY

ORION

FEATURES

Automatic cylinder valve without internal venting system (no gas tight housing required)
Max working pressure: 260 bar
Working temperature: -40°C + 85°C
Thermal safety valve (PRD)
Burst disk available upon request
Manual security tap
Excess flow valve
Low absorption solenoid valve
Integrated non-return valve available on request

CERTIFICATIONS

ECE R110
ISO 15500
CCOE
OGRA
SISEI
CERTIFIED
COVENIN 3227

SOL 1

FILLING VALVES

LIGHT DUTY

SOL 1

FEATURES

Filling charge valve NGV1
Max working pressure: 260 bar
Working temperature: -40°C +120°C
Special flow dynamic profile to avoid chattering noises during refueling
Filter available upon request

CERTIFICATIONS

ECE R110
CERTIFIED

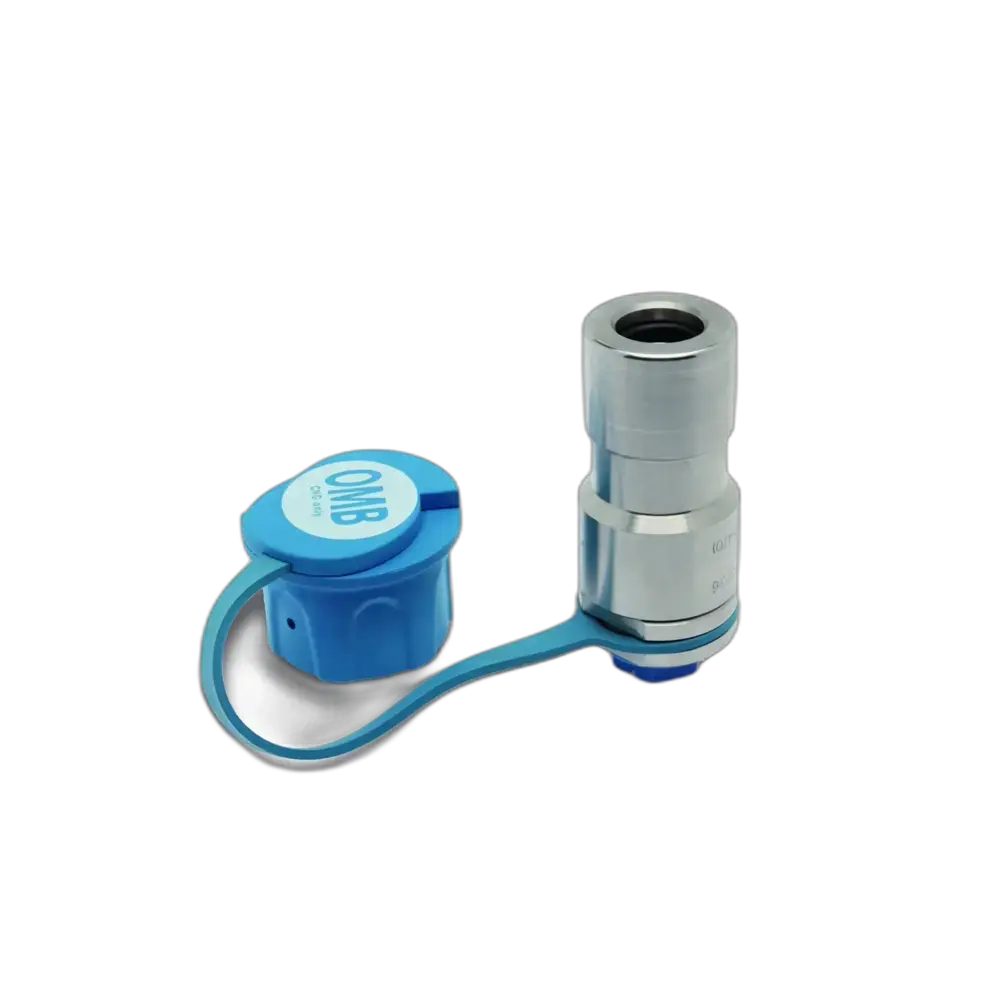

SOL 2

FILLING VALVES

HEAVY DUTY

SOL 2

FEATURES

Straight filling unit for heavy-duty vehicles
Max working pressure: 260 bar
Working temperature: -40°C +120°C
Special flow dynamic profile to avoid chattering noises during refueling
Internal check valve with DN 12 mm

CERTIFICATIONS

ECE R110
CERTIFIED
ISO 15500

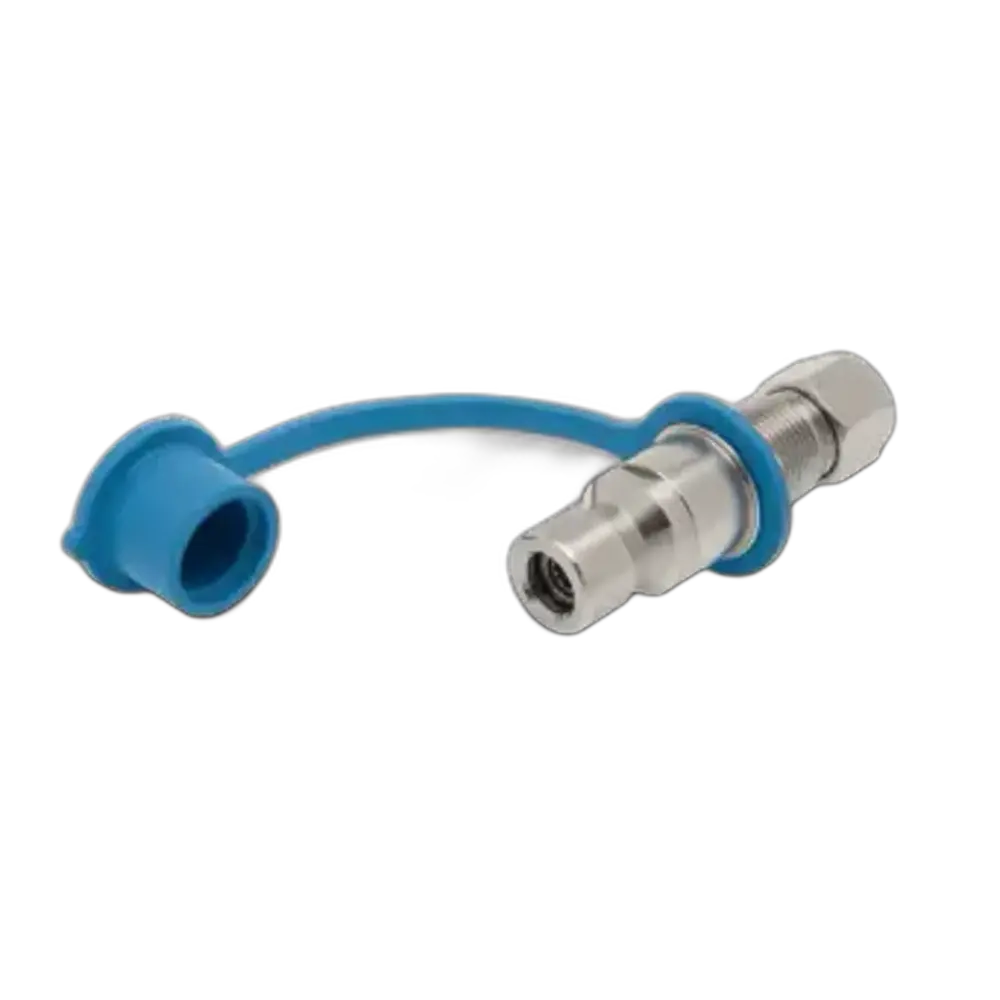

SOL H

FILLING VALVES

LIGHT DUTY

SOL H

FEATURES

Filling charge valve NGV1
Max working pressure: 260 bar
Working temperature: -40°C +120°C
Special flow dynamic profile to avoid chattering noises during refueling
2 ferrules connection
Available with removable filtering element

CERTIFICATIONS

ECE R110
CERTIFIED

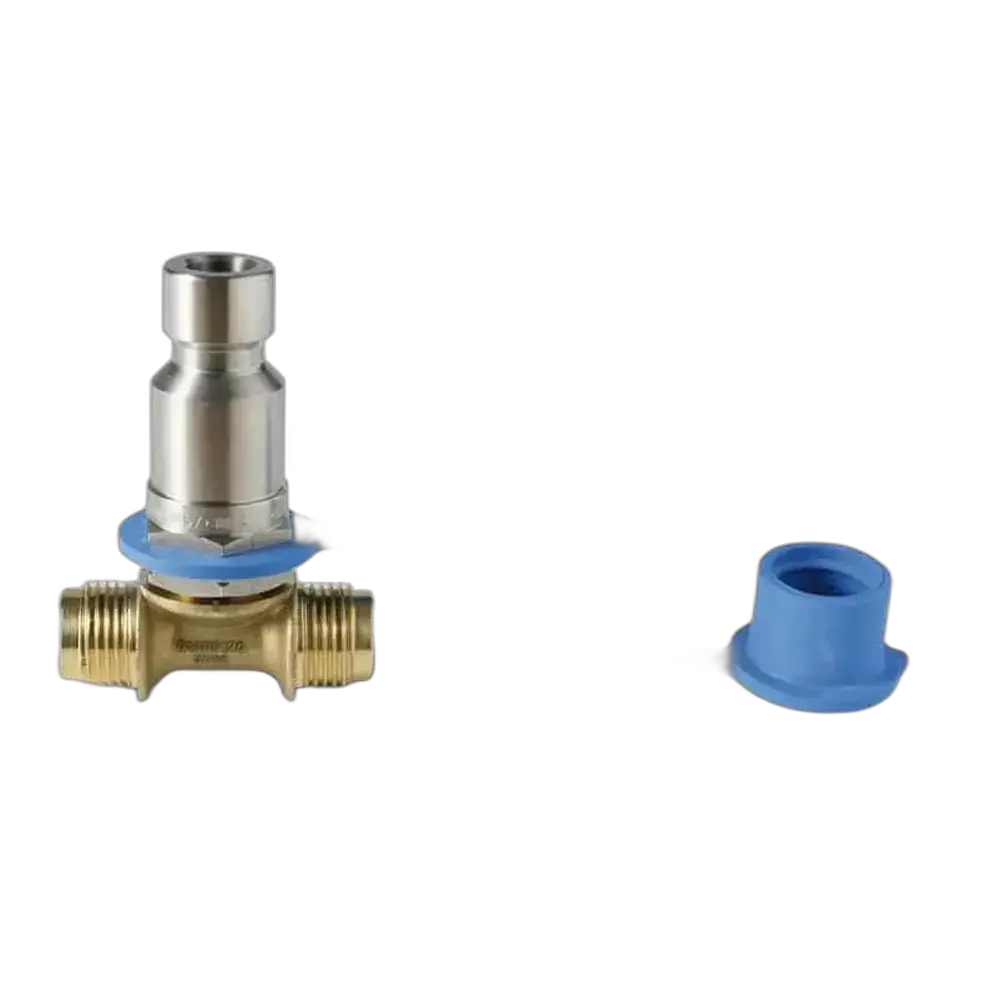

SOL NGV1

FILLING VALVES

LIGHT DUTY

SOL NGV1

FEATURES

Filling charge valve NGV1
Max working pressure: 260 bar
Working temperature: -40°C +120°C
Special flow dynamic profile to avoid chattering noises during refueling

CERTIFICATIONS

ECE R110
CERTIFIED

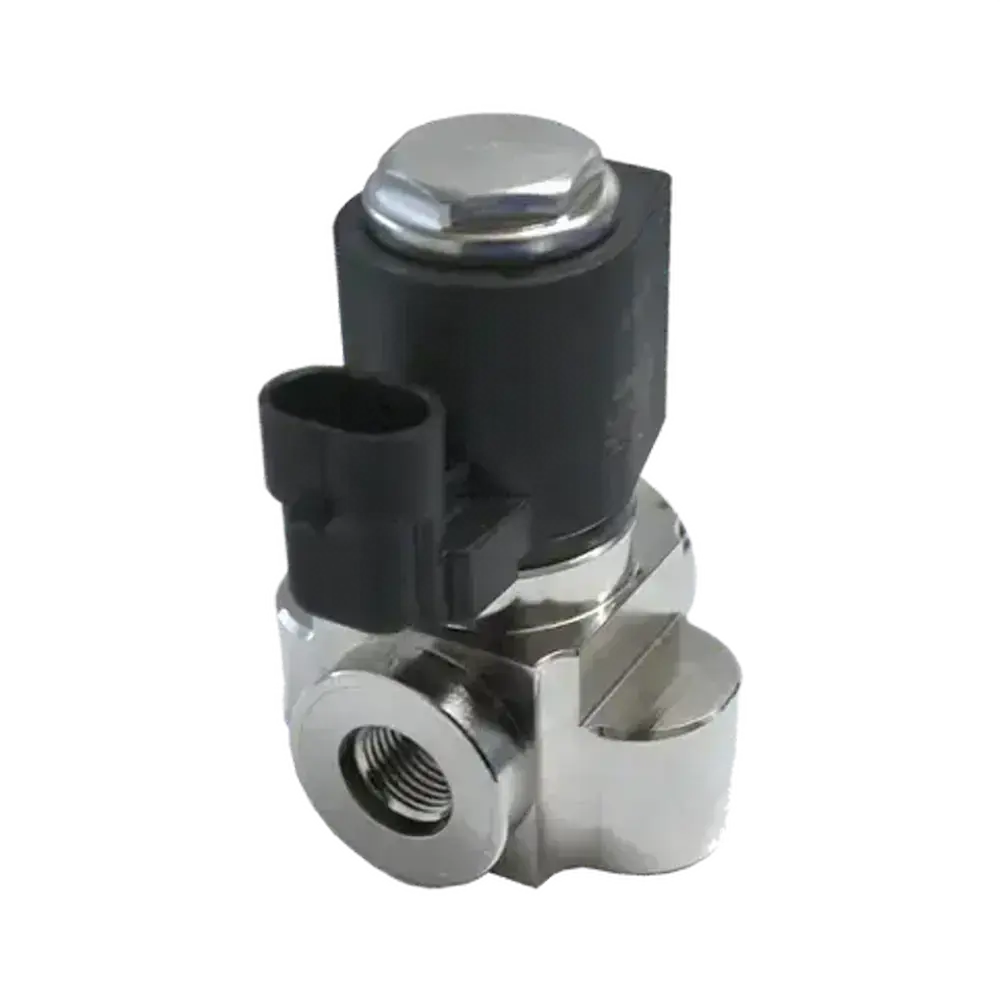

SOV

CUT OFF

SOV

DESCRIPTION

CUT-OFF SOLENOID FOR PRESSURE REGULATOR

FEATURES

LOW ABSORPTION SOLENOID VALVE
DIFFERENT THREADS FOR CONNECTION AVAILABLE
AMP SUPER SEAL / JPT / CUSTOMIZED UPON REQUEST
STEEL SLEEVE TUBE

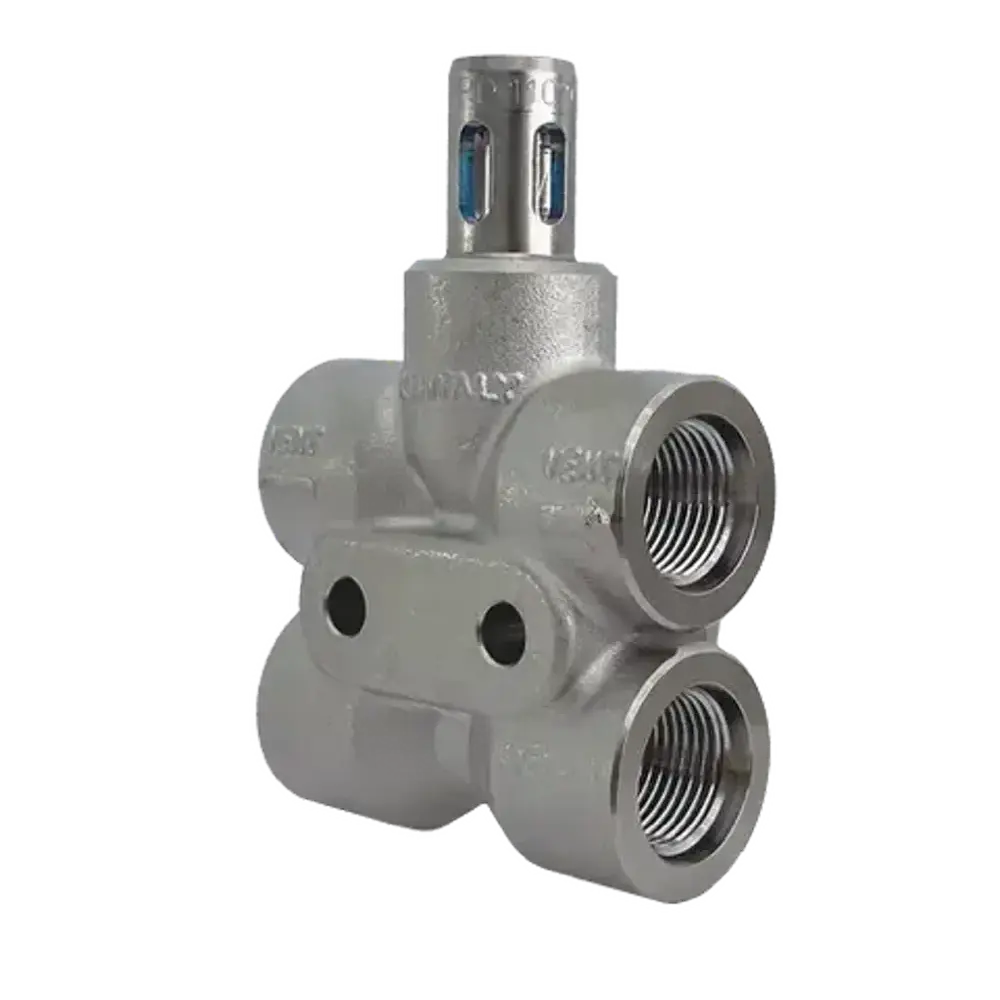

YORK 2

ADDITIONAL SAFETIES

YORK 2

With glass bulb

DESCRIPTION

Middle-plug TPRD 110°C (230°F)

FEATURES

Max working pressure 31MPa @ +82°C
Service pressure 24.8MPa
Working temperature: -40°C +85°C
Glass bulb concept; faster activation time

ERTIFICATIONS

ANSI-AGA NGV 3.1
ANSI-IAS PRD1
CERTIFIED

CILYNDER VALVES

LIGHT DUTY

ALFA NEW

FEATURES

Manual cylinder valve with internal venting system (no gas tight housing required)
Max working pressure: 260 bar
Working temperature: -40°C +85°C
Safeties: available without safeties or with a combination of thermal safety / excess flow / burst disk
Available in different thread sizes – additional safeties available for cylinders and pipes

CERTIFICATION

ECE R110
ISO 15500
OGRA
CCOE
CERTIFIED
SISEI
COVENIN 3227

CUT OFF

LIGHT DUTY

HEAVY DUTY

APUS

FEATURES

In line cut-off automatic valve
Low absorption solenoid valve
Universal thread connections available to match every application
CNG inlet filtering system
Max working pressure: 260 bar
Working temperature: -40 + 120°C

CERTIFICATIONS

ECE R110
CERTIFIED
ISO 15500

FILLING VALVES

LIGHT DUTY

ARGO

FEATURES

Filling charge valve
Max working pressure: 260 bar
Working temperature: -40°C +120°C
Manual safety tap – available in different thread connections

CERTIFICATIONS

ECE R110
CERTIFIED

FILLING VALVES

LIGHT DUTY

ARGO NGV1 COMPACT

FEATURES

Filling charge valve NGV1
Max working pressure: 260 bar
Working temperature: -40°C +120°C
Manual safety tap – non-return valve – available in different thread connections
Special flow dynamic profile to avoid chattering noises during refueling

CERTIFICATIONS

ECE R110
CERTIFIED

FILLING VALVES

LIGHT DUTY

ARGO RUSSIA

FEATURES

Filling charge valve for Russia and Ukraine
Max working pressure: 260 bar
Working temperature: – 40° + 120° C

CERTIFICATION:

ECE R110
CERTIFIED

CILYNDER VALVES

HEAVY DUTY

BETA NEW

FEATURES

Manual cylinder valve without internal venting system
Max working pressure: 260 bar
Working temperature: -40°C /+85°C
Conveyed thermal safety and burst disc
Available in different thread sizes – double connection and optional safety discharge port

CERTIFICATIONS

ANSI-AGA NGV 3.1
ANSI-IAS PRD1
CERTIFIED
ECE110
KGS
CCOE
ISO 15500

ADDITIONAL SAFETIES

BULL 2

With glass bulb

DESCRIPTION

End-line remote TPRD 110°C

FEATURES

Max working pressure 31MPa @ +82°C
Service pressure 24.8MPa
Working temperature: -40°C +85°C
Glass bulb concept; faster activation time

CERTIFICATIONS

ANSI-AGA NGV 3.1
ANSI-IAS PRD1
CERTIFIED

CILYNDER VALVES

LIGHT DUTY

HEAVY DUTY

ESA

FEATURES

Automatic cylinder valve
Max working pressure: 260 bar
Working temperature: -40°C +85°C
Glass bulb tprd
High flow thermal safety valve prd
Burst disk available upon request
Live port available
Safety venting port
Excess flow valve
Low absorption solenoid valve
Manual security tap – opening 180°
Specific for low temperatures
High flow
Design compact
Waterproof electric connection

CERTIFICATIONS

ECE R110
ANSI–AGA NGV 3.1
ANSI–IAS PRD1

FILLING VALVES

FUELING DEFUELING

DESCRIPTION

NGV1 receptacle

FEATURES

Max working pressure: 260 bar
Working temperature: -40°C +120°C
Special flow dynamic profile to avoid chattering noises during refueling
Embedded defueling device (to discharge pressure before maintenance operation)

CERTIFICATIONS

NGV3.1
CERTIFIED

CILYNDER VALVES

LIGHT DUTY

IDRA VT

FEATURES

Manual cylinder valve without internal venting system
Parallel safeties (TPRD + PPRD) with pipe-away ports
Max working pressure: 260 bar
Working temperature: -40°C +85°C
Excess flow
Available in different thread sizes

CERTIFICATIONS

ECE R110
CCOE
CERTIFIED
ISO 15500

CILYNDER VALVES

LIGHT DUTY

LIGHT

FEATURES

Manual cylinder valve without internal venting system
Max working pressure: 260 bar
Working temperature: -40°C +85°C
Manual security tap
Safeties: available without safeties or with a combination of thermal safety / excess flow / burst disk

CERTIFICATIONS

ECE R110
CCOE
CERTIFIED
SISEI
OGRA

CILYNDER VALVES

LIGHT DUTY

LIGHT VT

FEATURES

Manual cylinder valve without internal venting system
Max working pressure: 260 bar
Working temperature: -40°C +85°C
Safeties: available without safeties or with a combination of thermal safety / excess flow / burst disk
TPRD pipe – away safety port

CERTIFICATIONS

ECE R110
CCOE
CERTIFIED
SISEI
OGRA

CILYNDER VALVES

LIGHT DUTY

LYRA

FEATURES

Automatic cylinder valve with internal venting system (no gas tight housing required)
Max working pressure: 260 bar
Working temperature: -40°C + 85°C
High flow thermal safety valve
Available on demand the version with double PRD
Low absorption solenoid valve
On request with non-return valve integrated
Double pipe away safety ports

CERTIFICATIONS

ECE R110
ISO 15500
KGS
ANSI-AGA NGV 3.1
CERTIFIED
ANSI-IAS PRD1

CILYNDER VALVES

LIGHT DUTY

MOON

FEATURES

Automatic cylinder valve with internal venting system (no gas tight housing required)
Max working pressure: 260 bar
Working temperature: -40°C + 85°C
Thermal safety valve (PRD)
Burst disk available upon request
Manual security tap
Excess flow valve
Low absorption solenoid valve
Non-return valve avaible on request

CERTIFICATIONS

ECE R110
ISO 15500
CCOE
OGRA
SISEI
CERTIFIED
COVENIN 3227

CILYNDER VALVES

LIGHT DUTY

MOON CP

FEATURES

Automatic cylinder valve with internal venting system (no gas tight housing required)
Max working pressure: 260 bar
Working temperature: -40°C + 85°C
High flow thermal safety valve
Available on demand the version with double PRD
Low absorption solenoid valve
On request with non-return valve integrated
Double pipe away safety ports

CERTIFICATIONS

ECE R110
ISO 15500
CCOE

CILYNDER VALVES

LIGHT DUTY

ORION

FEATURES

Automatic cylinder valve without internal venting system (no gas tight housing required)
Max working pressure: 260 bar
Working temperature: -40°C + 85°C
Thermal safety valve (PRD)
Burst disk available upon request
Manual security tap
Excess flow valve
Low absorption solenoid valve
Integrated non-return valve available on request

CERTIFICATIONS

ECE R110
ISO 15500
CCOE
OGRA
SISEI
CERTIFIED
COVENIN 3227

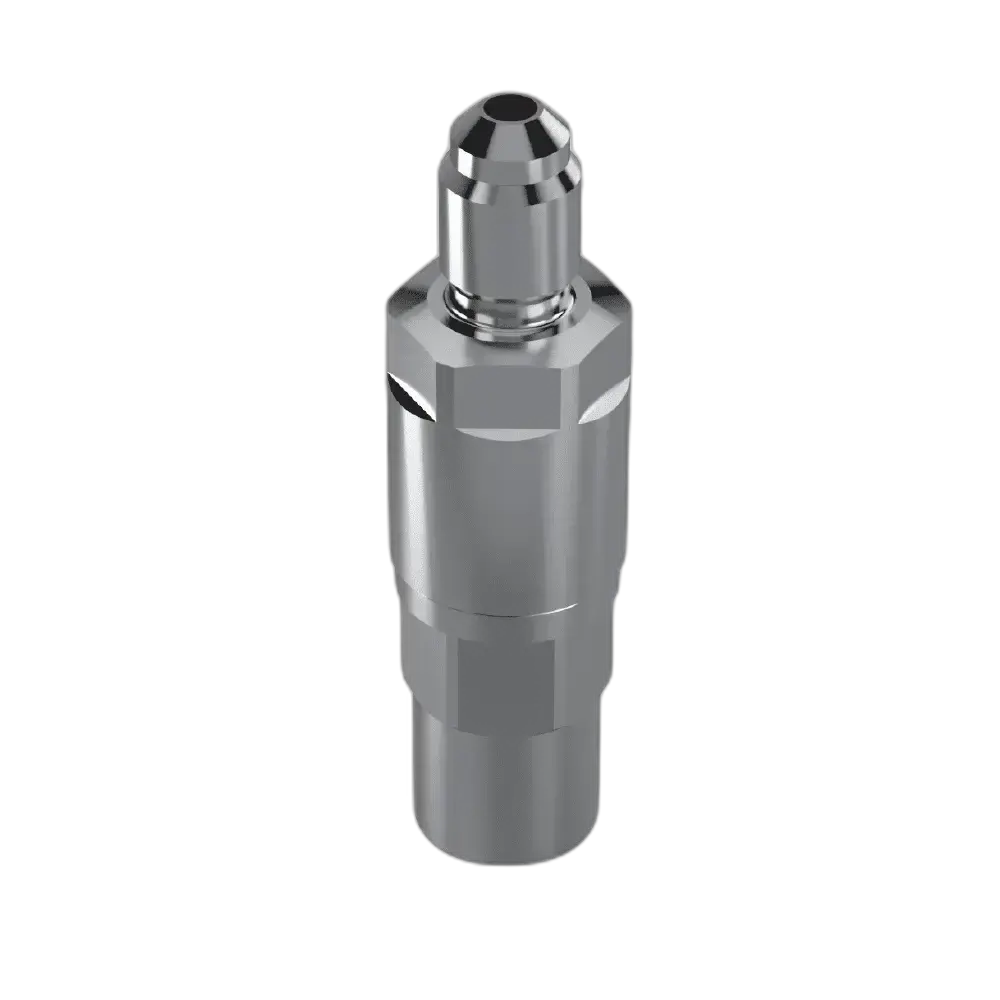

FILLING VALVES

LIGHT DUTY

SOL 1

FEATURES

Filling charge valve NGV1
Max working pressure: 260 bar
Working temperature: -40°C +120°C
Special flow dynamic profile to avoid chattering noises during refueling
Filter available upon request

CERTIFICATIONS

ECE R110
CERTIFIED

FILLING VALVES

HEAVY DUTY

SOL 2

FEATURES

Straight filling unit for heavy-duty vehicles
Max working pressure: 260 bar
Working temperature: -40°C +120°C
Special flow dynamic profile to avoid chattering noises during refueling
Internal check valve with DN 12 mm

CERTIFICATIONS

ECE R110
CERTIFIED
ISO 15500

FILLING VALVES

LIGHT DUTY

SOL H

FEATURES

Filling charge valve NGV1
Max working pressure: 260 bar
Working temperature: -40°C +120°C
Special flow dynamic profile to avoid chattering noises during refueling
2 ferrules connection
Available with removable filtering element

CERTIFICATIONS

ECE R110
CERTIFIED

FILLING VALVES

LIGHT DUTY

SOL NGV1

FEATURES

Filling charge valve NGV1
Max working pressure: 260 bar
Working temperature: -40°C +120°C
Special flow dynamic profile to avoid chattering noises during refueling

CERTIFICATIONS

ECE R110
CERTIFIED

CUT OFF

SOV

DESCRIPTION

CUT-OFF SOLENOID FOR PRESSURE REGULATOR

FEATURES

LOW ABSORPTION SOLENOID VALVE
DIFFERENT THREADS FOR CONNECTION AVAILABLE
AMP SUPER SEAL / JPT / CUSTOMIZED UPON REQUEST
STEEL SLEEVE TUBE

ADDITIONAL SAFETIES

YORK 2

With glass bulb

DESCRIPTION

Middle-plug TPRD 110°C (230°F)

FEATURES

Max working pressure 31MPa @ +82°C
Service pressure 24.8MPa
Working temperature: -40°C +85°C
Glass bulb concept; faster activation time

ERTIFICATIONS

ANSI-AGA NGV 3.1
ANSI-IAS PRD1
CERTIFIED
